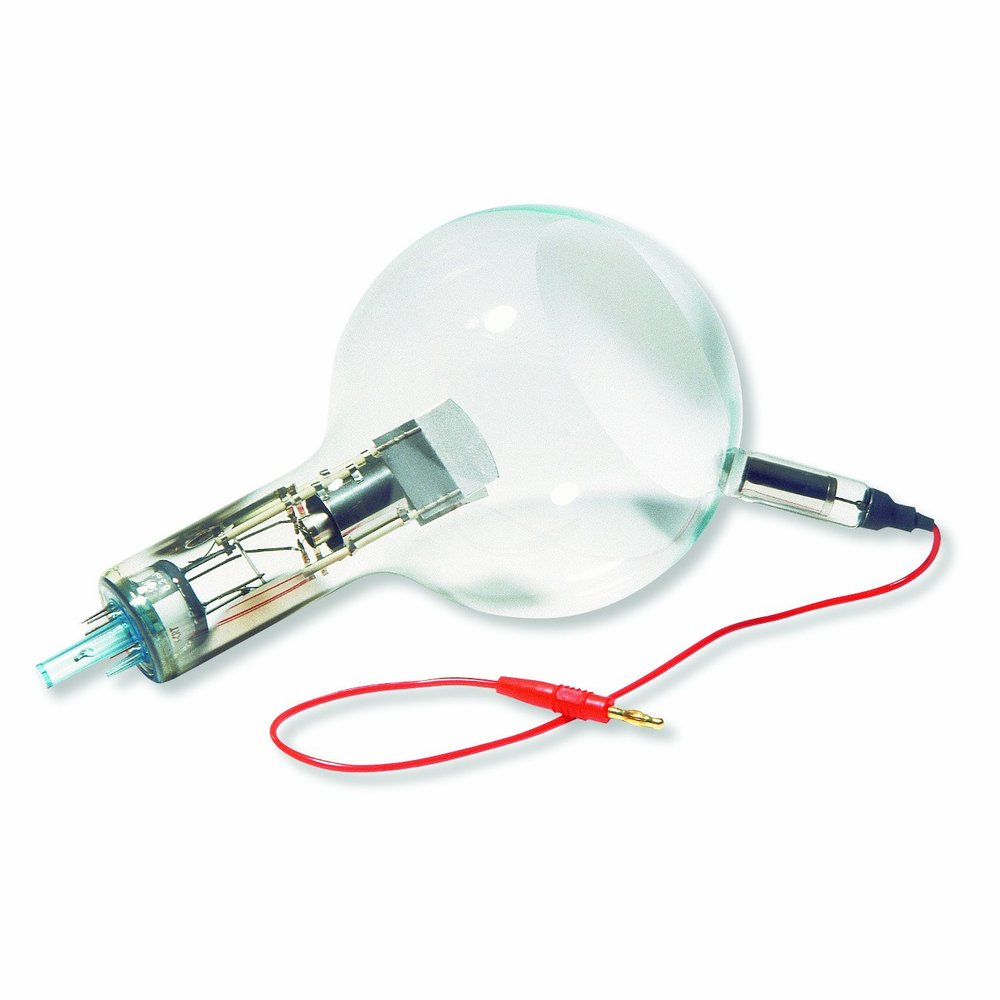

3B Scientific U18554 Teltron Perrin CR Electron Tube S

Description

• High-vacuum electron tube
• Focusing electron gun and fluorescent screen inclined relative to the beam axis so that the path of the beam can be seen
• Effects of electric and magnetic fields can be studied
• Determine the fundamental electron charge-to-mass ratio (e/m) and study mean electron velocities using field cancellation
• Maximum filament voltage: 6.3 VAC

Teltron perrin tube S. Highly evacuated electron tube with focusing electron gun and fluorescent screen inclined relative to the beam axis so that the path of the beam can be seen and the effects of electric and magnetic fields can be studied. The electron beam can be deflected using two methods: 1) electrically using electric field of the built-in plate capacitor or 2) magnetically using external Helmholtz Coils S. Also determine the fundamental electron charge-to-mass ratio (e/m) and study mean electron velocities using field cancellation. Maximum filament voltage: 6.3 volts AC. Maximum anode voltage: 5 kilovolt. Maximum capacitor voltage: 500 volts. Anode current: approximate 0.1 milliampere at 4 kilovolt (anode).
