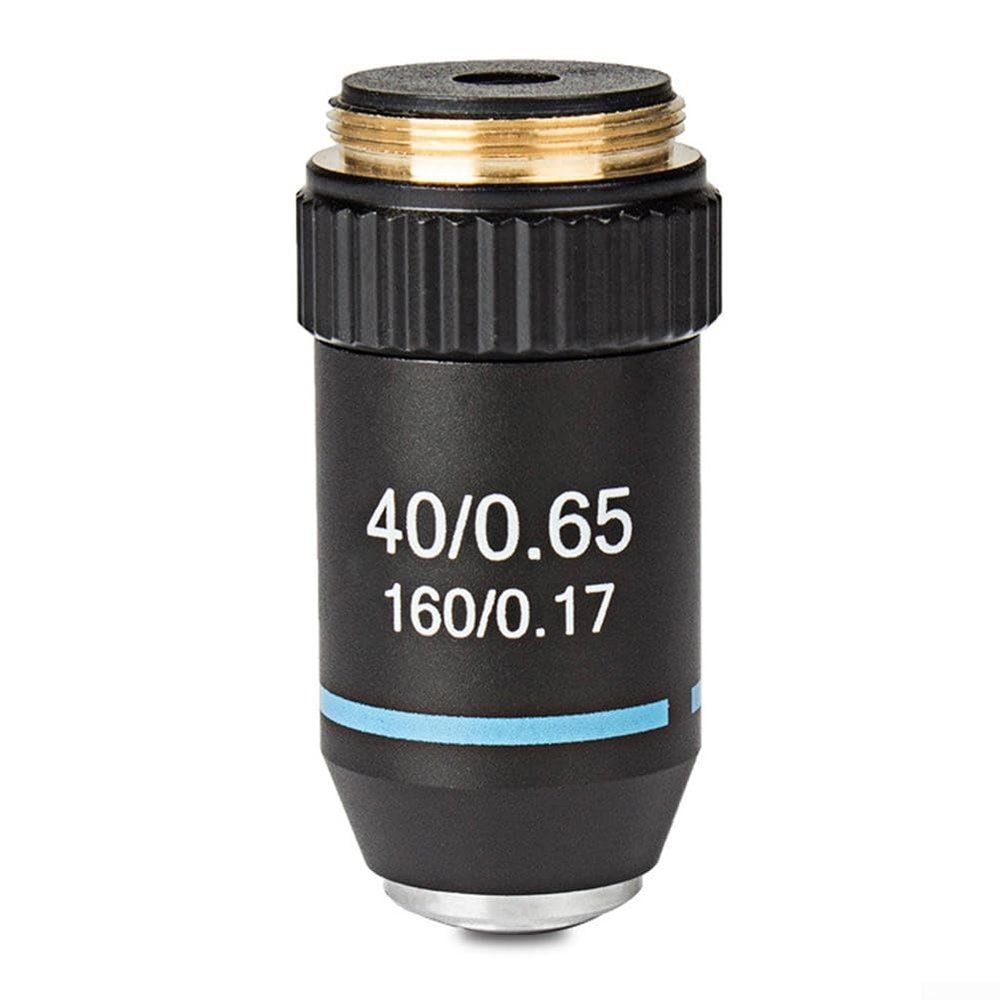

195 Achromatic Objective Lens for Biological Microscope, RMS 20.2mm Thread, 4X 20x 40x 60x 100x Oil Immersion Microscope Lens Set with 160mm Tube Length(40X)

Description

• LONG LASTING PERFORMANCE: Designed for biological microscopes with RMS20.2mm thread, this 195 achromatic objective lens delivers clear imaging and high light transmittance across 4X to 100X magnifications
• OIL IMMERSION : 100X(S,OIL) objective uses oil immersion technology to reduce light loss, enhance brightness, and provide detail for blood tests, research, and student sample viewing
• MULTI-LAYER COATED OPTICS: Features optical glass lenses with multi-layer coating that improve and contrast, perfect for observing cells, sperm, eggs, and biological specimens at high resolution
• ELASTIC FOCUS SAFETY: Spring-loaded design damage to slides and specimens during use, smooth transitions between low and high magnification observations
• COMPATIBLE WITH 185 AND 195 MICROSCOPES: Fits standard biological microscopes with 160mm tube length and 20.2mm thread diameter, offering a reliable upgrade or replacement solution

Product description

Features
oil refers to oil objective lens, 100x objective lens has high magnification and small aperture. Cedar oil is needed when using it. The light is transmitted in oil to reduce light loss, so as to enhance the brightness of the field of view and make the image clear.
Elastic objective lens: 4X, 10-X, 20X, 40X, 60X, 100X elastic objective lens, which ensures that the specimen will not be damaged when viewing.
Low-power objective lens has a larger aperture, brighter imaging, and a large field of view. High-power objective lens has a smaller aperture and significant magnification ability. The field of view and brightness are reduced, and it takes to find the image.
It is suitable for various types of biological microscopes with original objective lenses of 185 and 195.
Specifications
Part name: 195 achromatic objective lens
Size: Tube length: 160mm
Color: as shown
Thread diameter: 20.2mm
Product magnification: 4X /10-X / 20X(S)/ 40X(S) /60X(S) /100X(S,OIL.)
Material: for copper core
Standard cover glass thickness 0.17mm
Product packaging: storage box
Use: For biological microscopes
Product advantages: Optical glass lens multi-layer coating, clear imaging, high light transmittance
The purpose of each extended target:
It is recommended to observe at low magnification first to obtain a good field of view and brightness, and then gradually observe at high magnification.
4x: View notes, repair electronic motherboards, . (objects can be seen separately) The image is clearer than a magnifying glass
10-X: View terminal worms, dust, , find images, initial magnification
20X: Observe cells, , dust, , find images, and enlarge again
40x: Observe cells, blood, sperm, eggs, artificial insemination, .
60X: Observe cells, blood, sperm, eggs, a large number of , .
