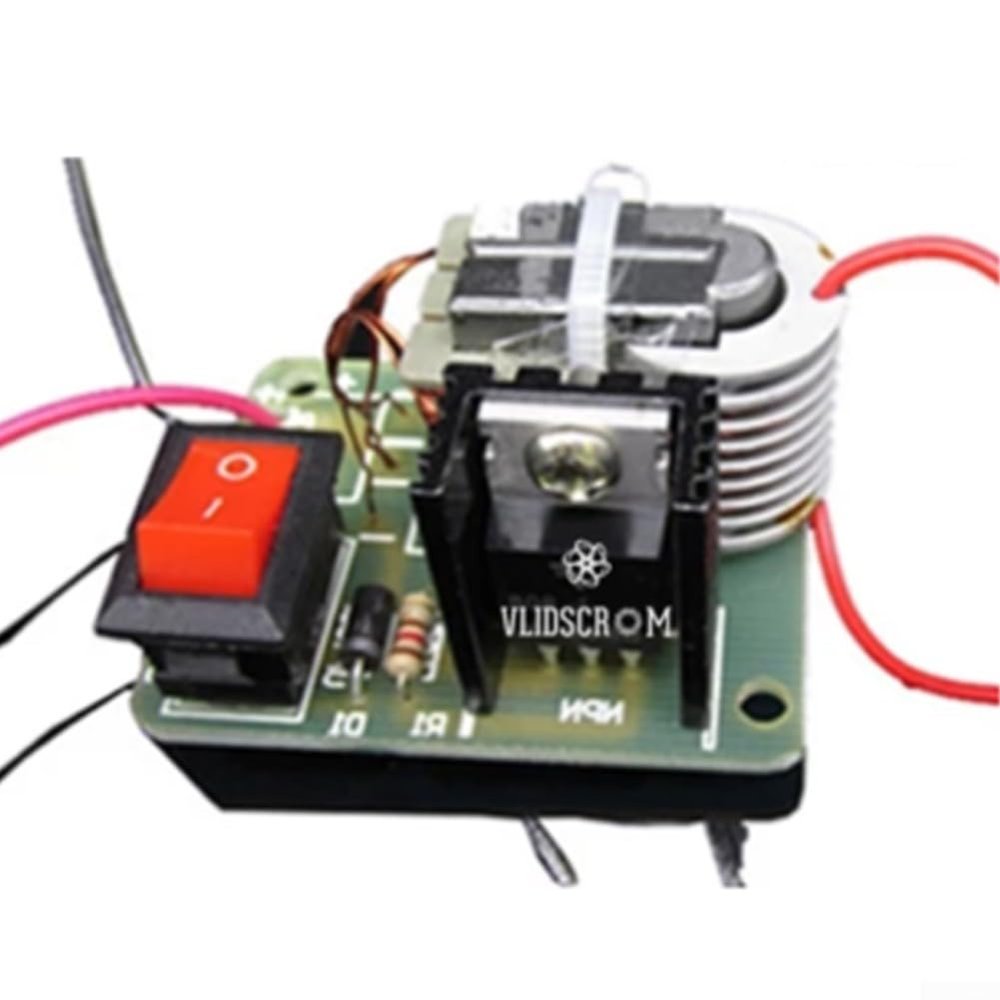

15KV High Voltage Generator Module Kit for Science Experiment Enthusiasts

Description

• - DIY KitThis product is a DIY kit for a 15KV high voltage inverter generator spark coil module. It provides the necessary components and a professional circuit diagram for convenient electronics study.
• - Reliable CircuitThe circuit of this kit is simple and reliable, stable and reliable performance. It is suitable for high school science experiments, electronic equipment, negative ion generators, and small scientific productions.
• - Plasma The high-frequency generated by this circuit is stable and has a high temperature. It can be used to ignite combustibles, making it a plasma .
• - Wide Input Voltage RangeIt operates on DC 7V-4.2V input voltage, and though limited to 12V, it can still be used effectively. However, special attention should be paid to the base resistance which needs adjustment for optimal performance.

Features:

Made of high-quality materials for durability
This product is a booster coil production kit, the circuit is simple and reliable, and it is equipped with a professional circuit diagram, which is convenient for enthusiasts to study electronics.
Uses: high school science experiments, electronic equipment, negative ion generators, small scientific production. The high-frequency generated by this circuit is stable, with high temperature, and it is easy to ignite combustibles, so it is called a plasma .

Parameter:
15KV Transformer Dimensions: 271621mm
Input voltage: DC 3.7V-4.2V (limited to 12v, it is not recommended for easy damage, this transformer is also suitable for 12V input voltage, but the base resistance needs to be increased to about 150~1.5K, and its resistance value should be changed. Otherwise burn the triode or transformer)
Input current: <2A
Output voltage: about 15KV (please pay attention to safety when using)
Output current: 0.4A
High voltage bipolar for ignition distance: 0.5 cm
PCB board size: 4.2CM*3.2CM*0.16CM

When the input terminal of the product is connected to 3.7V-4.2V power supply, the secondary high-voltage output terminal is not connected to high-voltage rectifier diodes and capacitors, and the output terminal level 1.5cm long will produce a purple high-temperature , which will not burst, but the temperature is very high, which can be easily Instantly lit ciga rette papers, and even very thin iron wires burned s (such as the scene where the thin iron wire burns in oxygen in a junior high school experiment, but it is not as strong as oxygen).

Transformer structure:
There are two primary windings, primary winding, winding, and the secondary output high voltage. Others: The 15KV transformer is designed for maximum output, and the limit output cannot exceed 15KV, which is a -centimeter . Higher output voltage is likely to damage the transformer.
